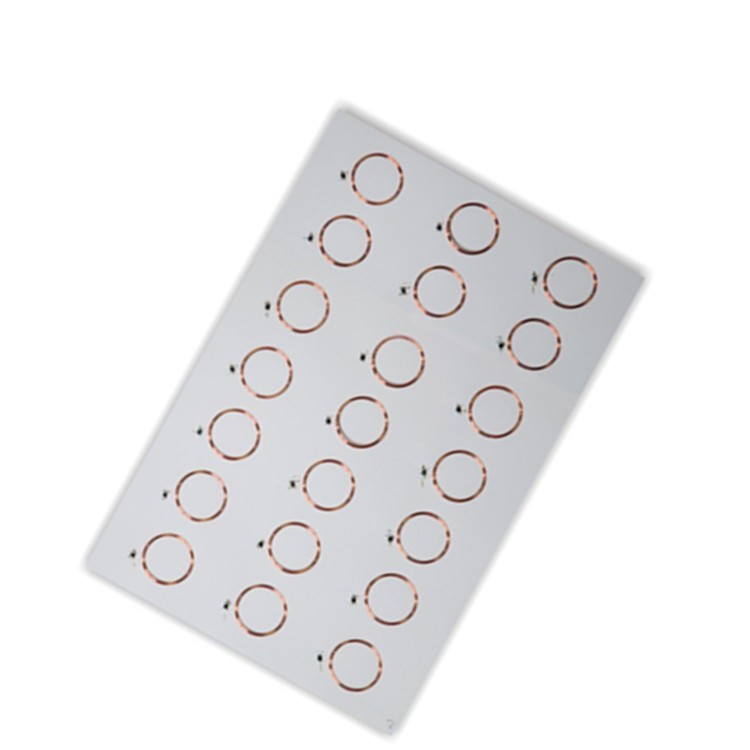

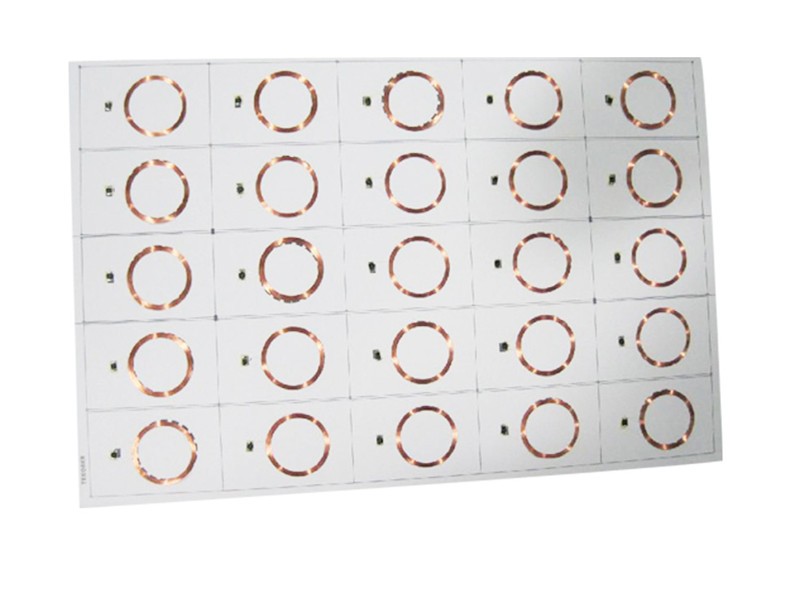

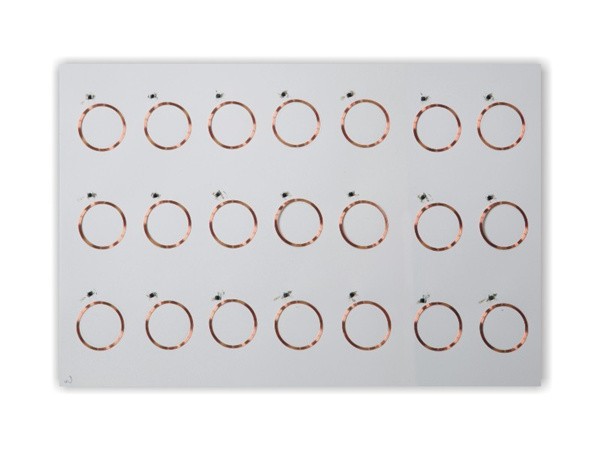

125KHz LF T5577 Program Tags RFID Prelam Inlay PVC Sheet

125KHz LF T5577 Program Tags RFID Prelam Inlay PVC Sheet

Thickness:0.4mm,0.45mm,0.5mm,0.55mm ,etc
Material:PVC ,PET.PETG,Paper,etc
Chip:LF,HF,UHF ,Dual interface ,combo,etc
layout:2x5,3x7,3x8,5x5,4x5,4x8,8x10,etc

Smart Card Inlay Sheet

Material:PVC,PET,PETG,etc

Chip:125khz,13.56mhz,UHF, 125khz+UHF,125khz+13.56mhz,13.56mhz +UHF,Dual interface,

Layout:3x8,2x5,4x8,6x8,8x10,5x5,3x7,4x5,etc;

Thickness:0.4mm,0.45mm,0.5mm,0.55mm,etc

Craft:Laser numbering,Printing cutting line;

Product Description

Chip	LF: TK4100 ,EM4200,EM4305,EM4450,T5577 ,Hi-tag1,Hi-tag2. HF: Fudan F08 1k/4k; MF Classic 1k / 4k; N-tag213/215/216; MF U-ltra-light /-C;MF DE-SFire 2K/4K/8K; MF P-lus-X /S 2K /4K ; I-code Sli -X/S; TI-2048;F-ELICA-LITE-S; To-paz512; Ul-tra-light Vin-card; MF 1k Vin-card s-alto card . UHF: H3,M4QT,M4,and so on.. Dual Frequency: LF+HF, HF+UHF, LF+UHF. Above chips are optional
Protocol	ISO7815,ISO11784/85,ISO14443A,ISO15693,EPC C1 GEN2 are optional
Size	A4,A3,Customized and optional
Memory	64biy,128bit,192bit,1024bit,512bit,504bytes,888bytes are optional
Frequency	125khz,13.56mhz,860-960mhz are optional
Material	Pvc
Write endurance	100,000cycles
Print	Print cut line
Page Size	2×5,3×7,5×5,customized
Data Retention	10years
Erasable Times	100,000cycles
Working Temperature	optional
Applications	Card production
