Frequency:13.56Mhz
Interface:Type-c
Operating System:Win XP\Win CE\Win 7\Win 10\LIUNX\Vista\Android
Support cards:MF(S50/S70/Ntag203 etc.ect. 14443A protocols cards)

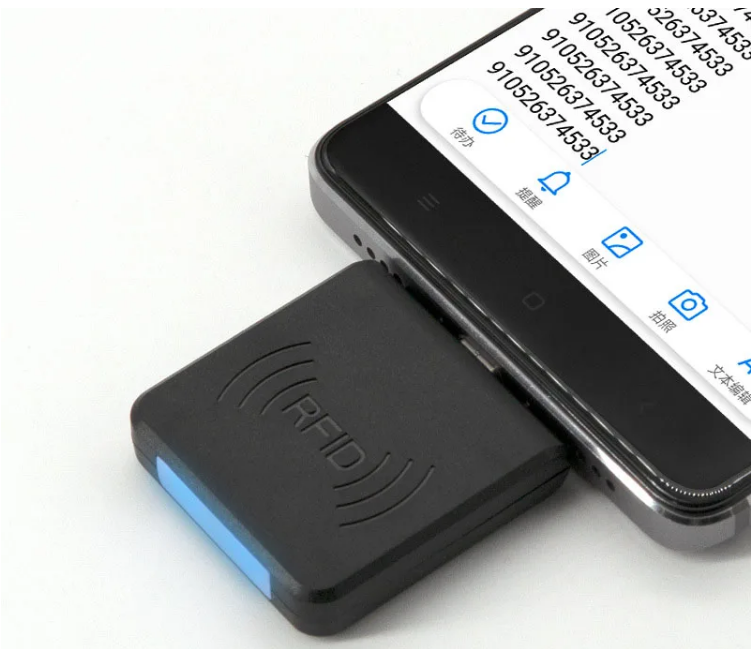

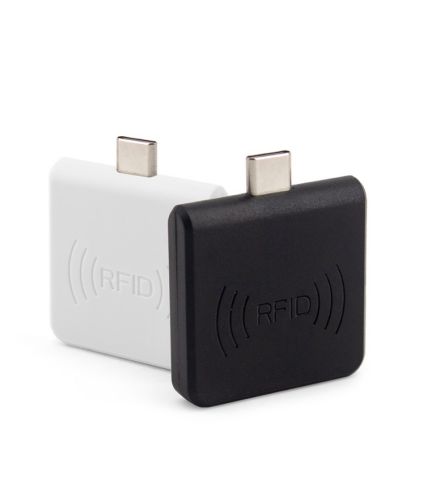

The R65C is a portable, contactless smart card (IC card) read-only small reader developed in accordance with the ISO14443A international standard protocol, which can be directly connected to the Android intelligent system platform through the TYPE-C interface. It can be inserted at will (plug and play), without external power supply, and the exquisite and compact design is not only simple and convenient in use, but also stable, accurate and reliable in reading.
The product can not only be used on the mobile phone/tablet lamp Android system platform, but also can connect the computer (computer) through the OTG conversion line, and read the smart card (IC card) serial number data in the output software of the computer (such as: Notepad, WORD, EXCEL and other editors). Widely used in conference sign-in, home school pass, recharge charge, access control and other application fields.
Item | Data |
Frequency | 13.56Mhz |
Card type | MF\S50\S70,etc ISO14443A protocols |
Operating voltage | 5V |
Read distance | 0~30mm(Front/back);0~10mm(side) |
Read Speed | 0.2s |
Read time | <100ms |
Read space | 0.5S |
interface | Type-c |
Working tempreture | -20℃~70℃ |
Working current | 100mA |
Dimensions | 35mm×35mm×7mm(without interface ) 71mm×71mm×19mm(packing) |
weight | 20g(net weight) 50g(include package) |
Operate system | Operating system Android (test brands: Samsung, SONY, VIVO, Xiaomi) Windows system: WinXP, Win7, Win10, etc. (need to transfer via OTG line) |
Other | Other status indicator: 2 color LED (" blue "power LED," green "status indicator) Output format: Default 10-bit decimal (4 bytes), support custom output format. |
