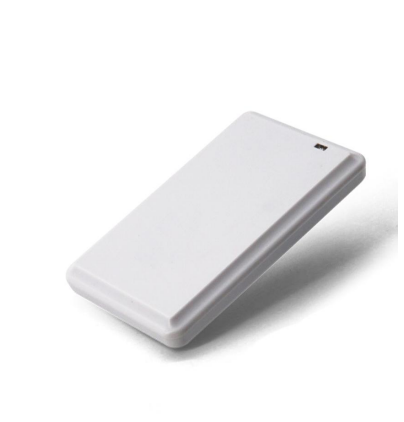

UHF+NFC Reader

Features

working frequency:

National standard (920~925MHz) 13.56mhz

American Standard (902~928MHz)

Other multinational frequency standards (customized)

Label Agreement:

ISO18000-6C (EPC GEN2) 13.56mhz

Frequency hopping method:

Broad spectrum frequency hopping (FHSS) or fixed frequency that can be set by software;

Antenna parameters:

2dBi circular polarization antenna (built-in)

Output Power:

12.5dBm~26dBm (software adjustable)

Reading distance:

The maximum reading distance of the tag: 0.5m (related to factors such as transmit power, antenna type, tag type and application environment)

Maximum distance to write tags: 0.2m (depending on factors such as transmit power, antenna type, tag type and application environment)

Operating mode:

Active mode

Passive mode

Answer mode (not recommended)

External interface

working environment

Power interface:

DC +5V

Operating temperature:

-20℃～55℃

Communication Interface:

USB virtual keyboard

storage temperature:

-40℃～85℃

USB virtual serial port (need to be customized)

Physical parameter

size:

104mm×68mm×10mm

weight:

100g/200g

annex

Power Adapter:

USB powered

RS-232 signal line:

Equipped

Power cable:

Equipped

Development kit:

Provide SDK(920~9258MHz )
