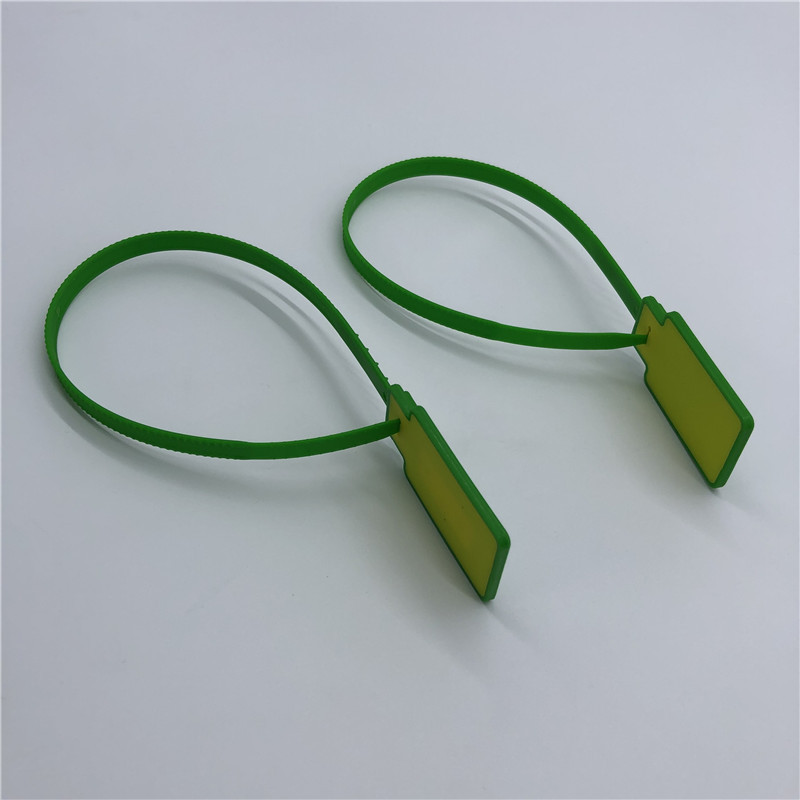

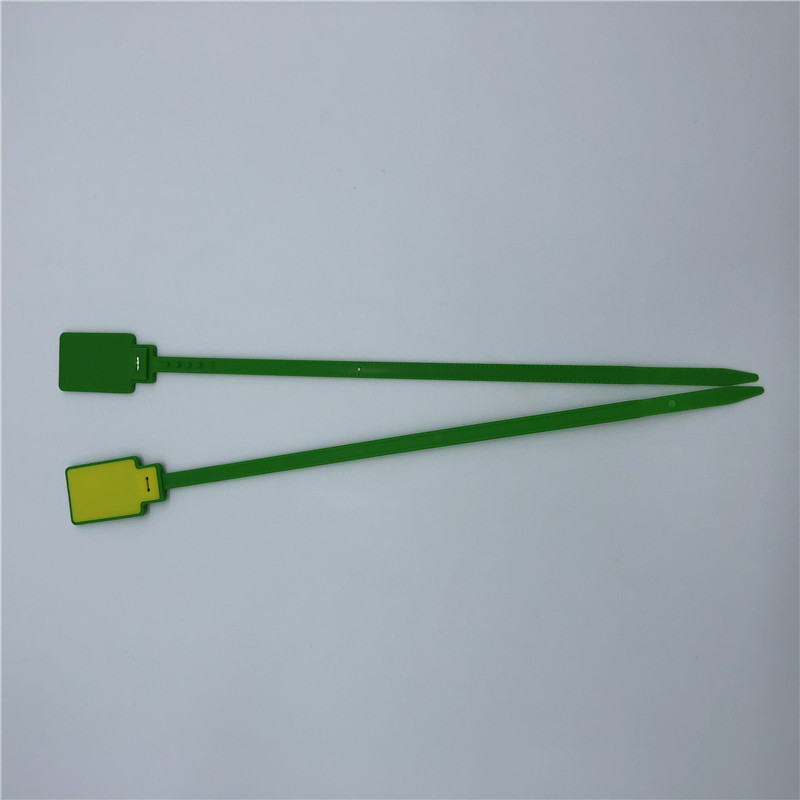

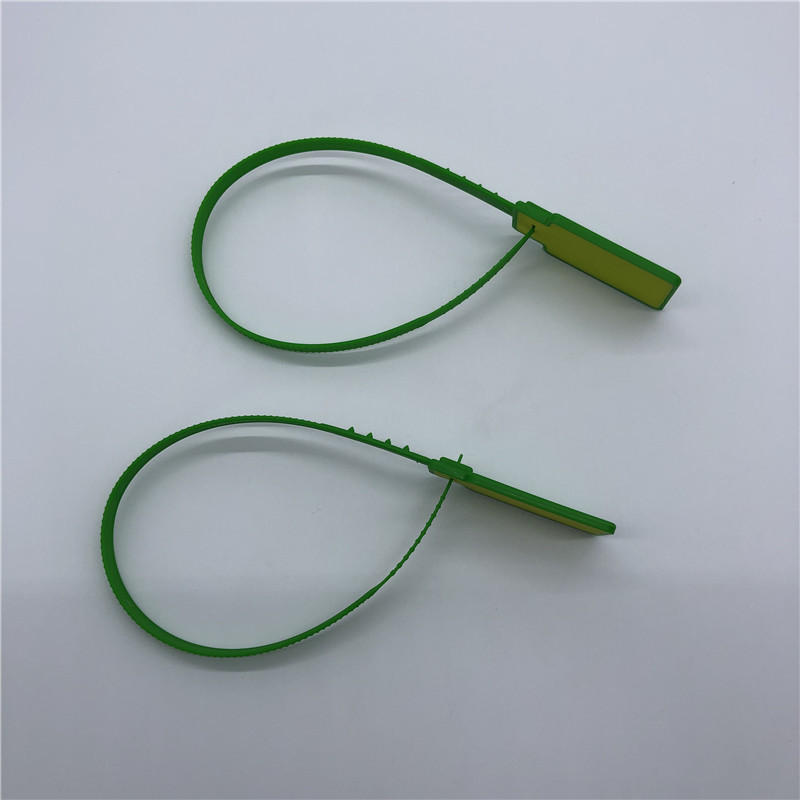

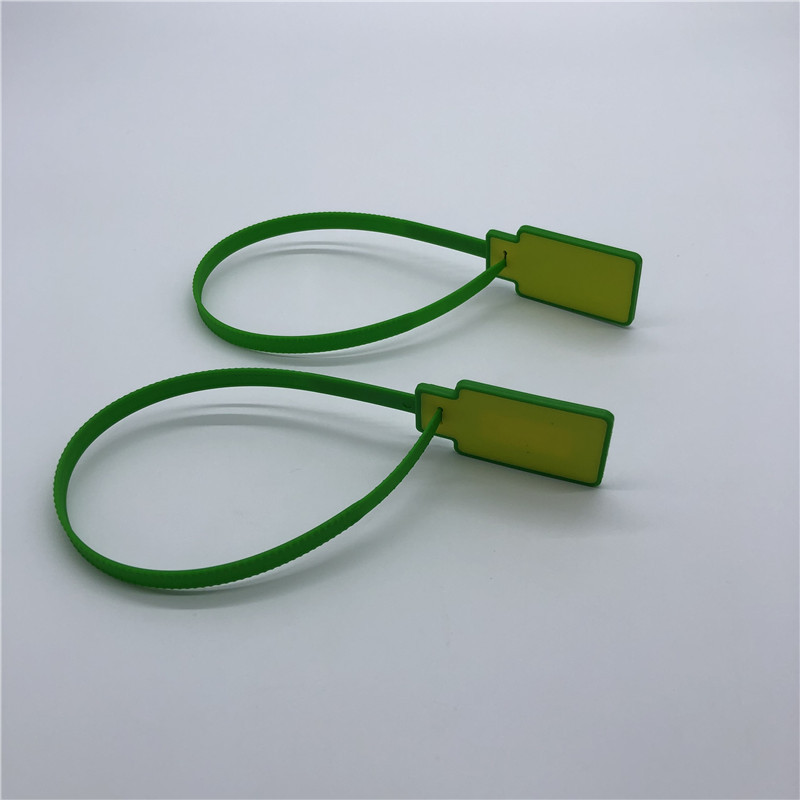

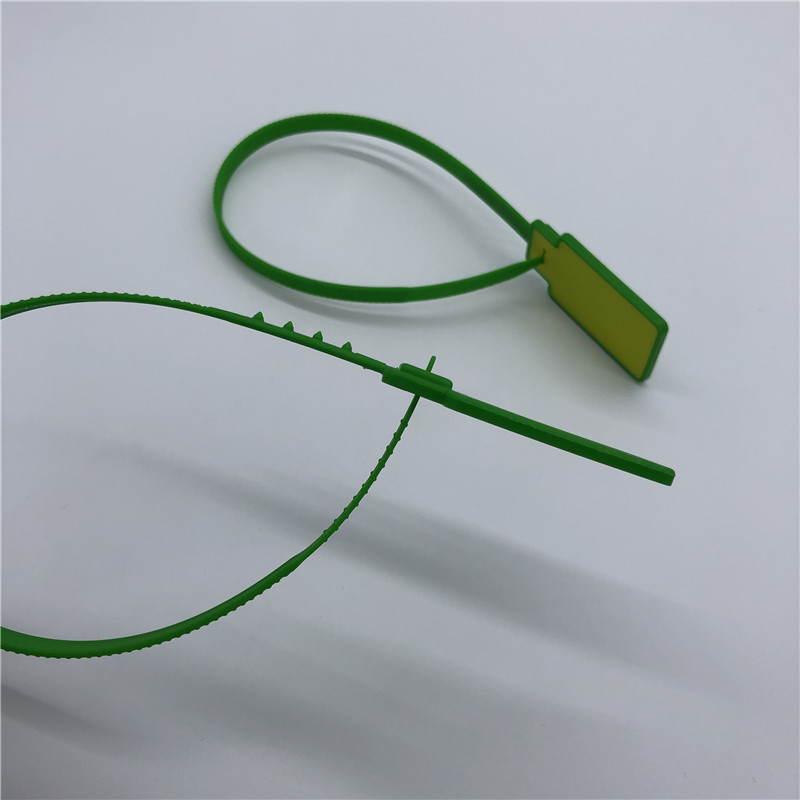

RFID Cable Tie 332*56*30 (MM)

RFID tie-wrap electronic tags are widely used in various application scenarios where items need to be tied up. The electronic tags in the tie-wrap part are located outside the tied-up items and are not affected by the material of the items being tied. They can be conveniently tied at the specific positions of the items. They are used for non-contact identification and rapid authentication of the tied-up items to facilitate the management of item data information for logistics tracking purposes. The tag part is encapsulated with transparent crystal material, or plastic encapsulation, or by dip-coating process, etc.

Application: Marking identification, item classification, information collection, tracking and traceability, sealing and binding of parcel labels for items, combination identification of objects. Logistics tracking and other convenient methods for items and various situations similar to this.

Ultra-high frequency tape-type electronic tag

Tag size: 332*56*30 (MM)

Product process: Etching aluminum

Base material: PP plastic packaging

Agreement: ISO 18000-6C

Chip model: ALIEN 9662

Memory capacity: 512 Bits

EPC sector: 96 - 480 bits

Induction frequency: 840 - 960 MHz

Reading and writing distance: 0 - 8M. (For UHF Reader, P = 5W, 12 dB0, different power levels of card readers will vary.)

Storage temperature: -25℃ to +65℃

Operating temperature: -25℃ to +65℃

The data can be retained for 10 years and the memory can be erased 100,000 times.

Scope of application of labels: Logistics management, parcel circulation management, warehouse management, etc.

(Note: The size of the labels and the chips can be customized according to the customer's requirements.)
