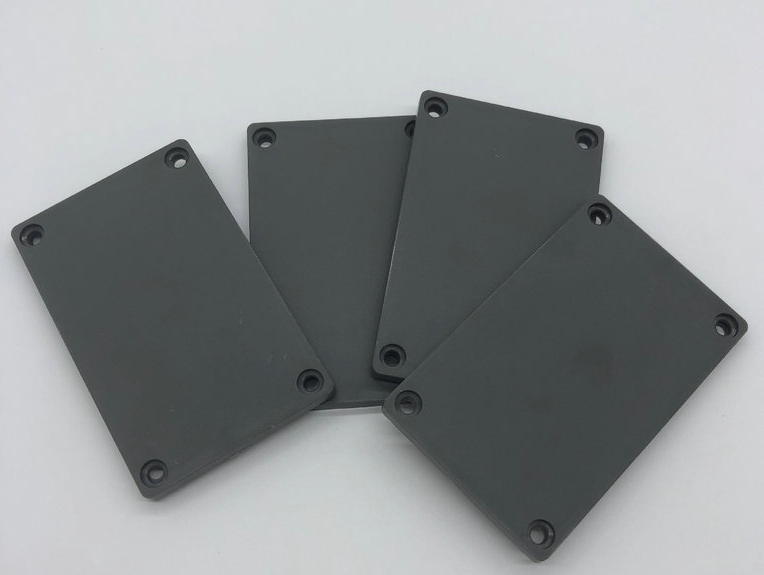

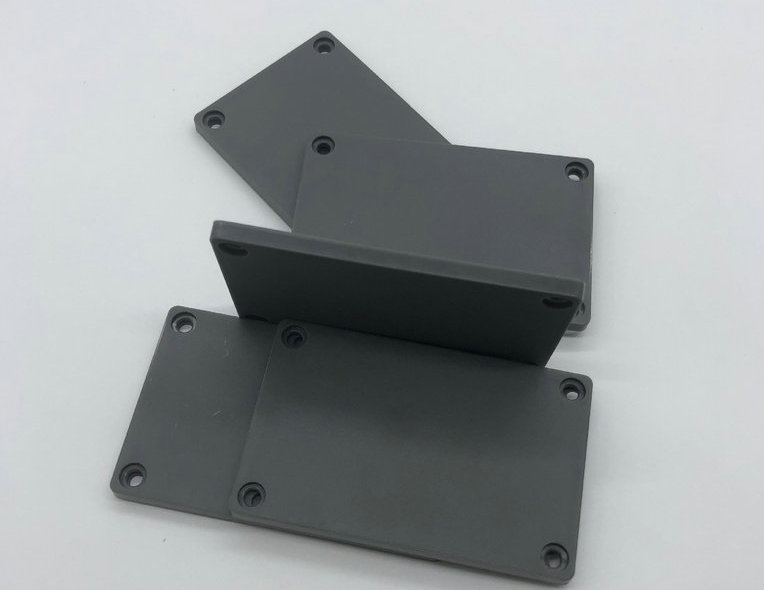

Abs UHF Card

UHF Tag technical parameter table:

Product name: UHF Tag

Product size: 85.5mm× 54mm × 5mm

Chip: Alien H3 9662(or select R6 U7 U8, etc.)

Operating frequency: 860~960MHZ or other frequency frequency hopping or fixed frequency work

Support protocol: ISOISO18000-6C (H3)

Read and write distance: 3 ~ 10M depending on the gain of the reader antenna or the use environment

Base material: ABS shell, ultrasonic package

Installation method: glue or screw

Memory capacity EEPROM total 512 Bits, of which 96 Bits EPC encoding, 64 Bits used as system parameters at the factory as ID number and distribution circulation management data has been locked can not be changed.

Programmable memory capacity EPC area 96Bits is a user application development zone, which can perform byte split formatting function and lock read and write operations according to needs.

It takes at least 1.4 ms to read the memory EEPROM data of a single label every 32bits. The minimum write time is 30ms per 32bits

The anti-interference performance of the label adopts the anti-collision communication protocol; Effective binary tree anti-collision mechanism, is not limited by the number of labels in the work area and can effectively read up to 50 or more labels per second.

Operating temperature: -25℃ ~ 65℃

Storage temperature: -30℃ ~ 75℃

17g/ PC 25 / packet
