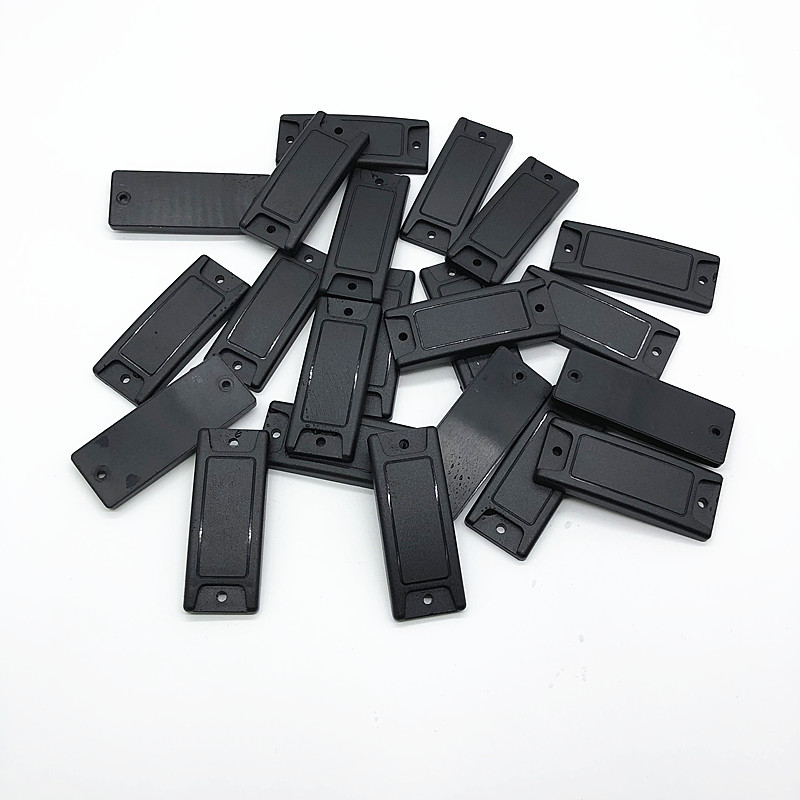

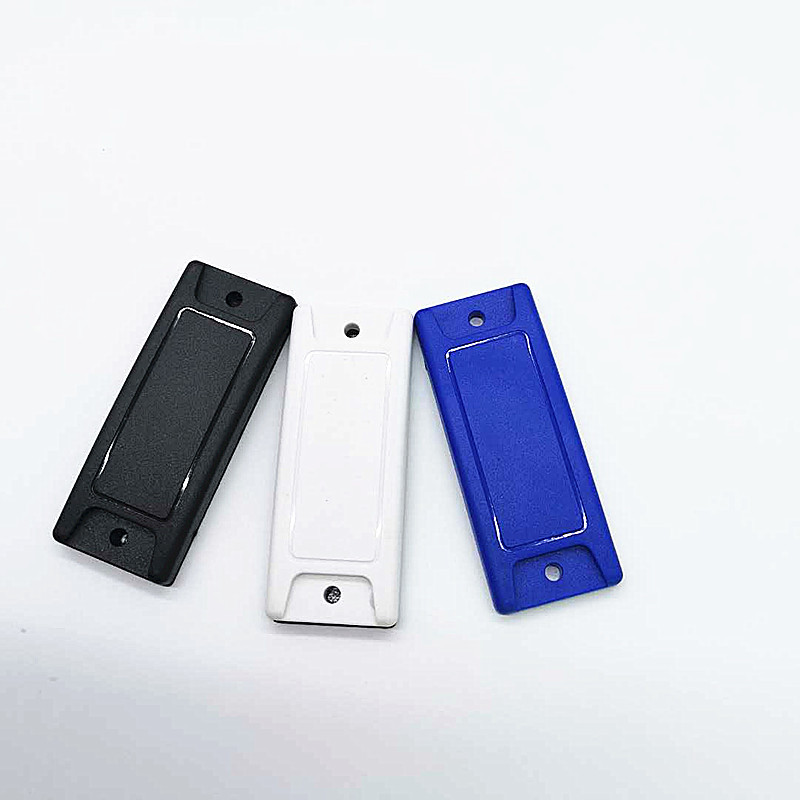

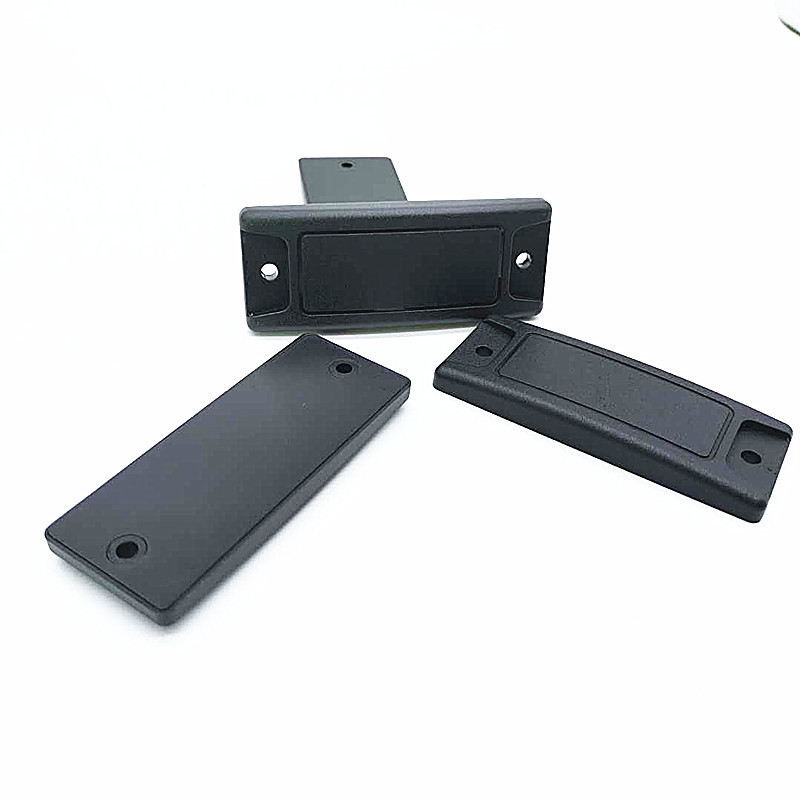

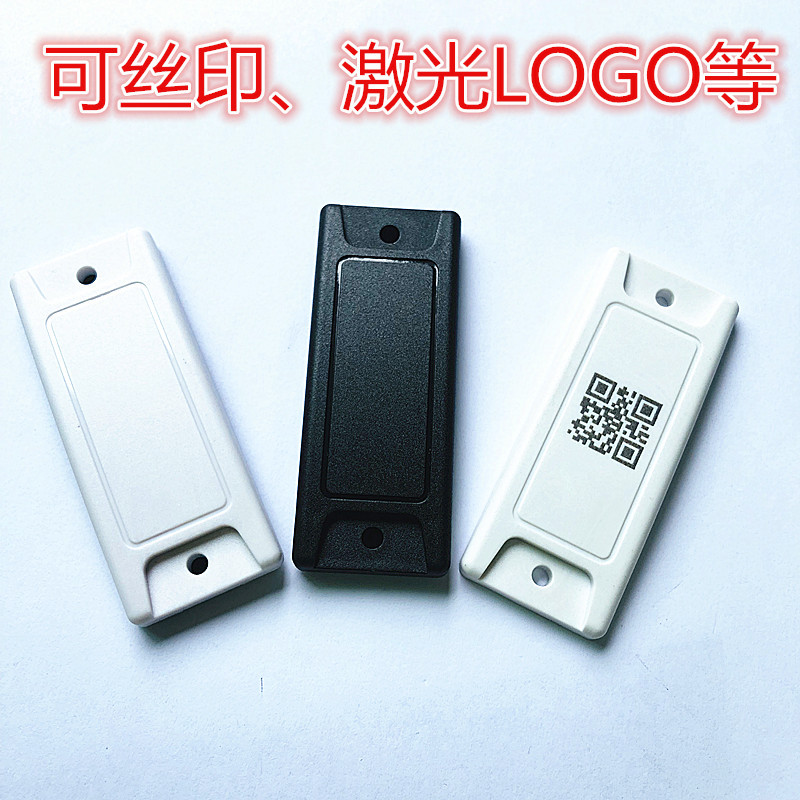

RFID ABS METAL TAG
Base material :ABS shell, ultrasonic package

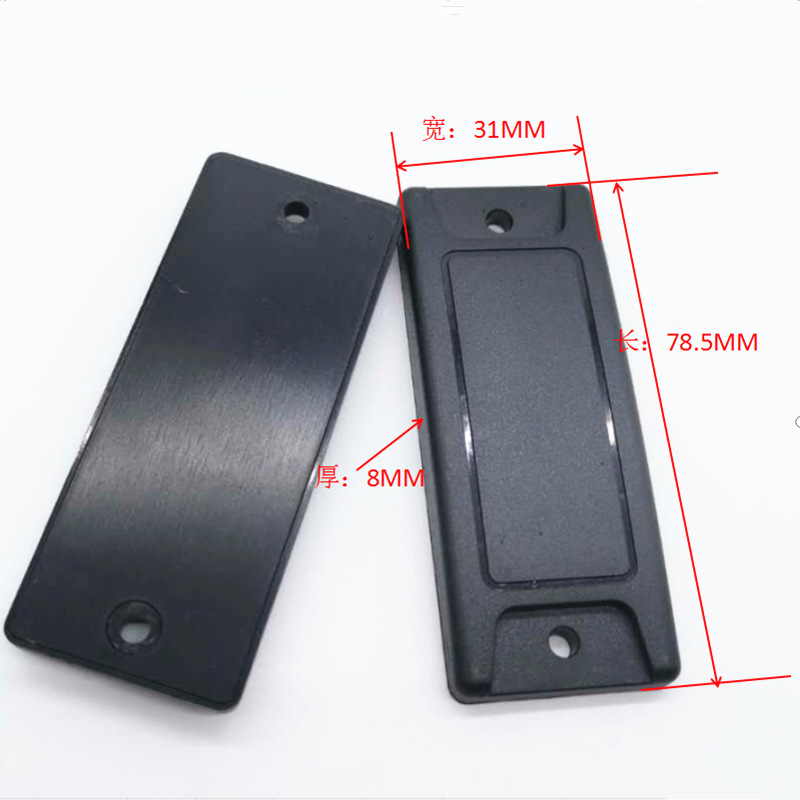

Product size :78MM*31MM*8MM
Operating frequency:860-960MHz
Application:fixed assets, pallets, shelves, turnover box management and other fields
UHF metal Tag technical parameter table:
Product name :UhF UHF anti-metal tag
Product size :78MM*31MM*8MM
Chip :AlienH3 or other UHF
Operating frequency :860~960MHZ or other frequency frequency hopping or fixed frequency work
Supported protocol :ISO18000-6C(EPCGEN2)
Read and write distance :0-3M depending on the gain of the reader antenna or the use environment
Base material :ABS shell, ultrasonic package
Memory capacity EEPROM total 512 Bits, of which 96 Bits EPC encoding.64 Bits used as system parameters at the factory as ID number and distribution circulation management data has been locked and cannot be changed.
It takes at least 1.4 ms to read the memory EEPROM data of a single label every 32bits. The minimum write time is 30ms per 32bits
Tag anti-interference performance Anti-collision communication protocol: effective binary tree anti-collision mechanism, is not limited and affected by the number of Tags in the work area, can effectively read up to 50 Tag per second.
Operating temperature :-40℃~65℃
Storage temperature :-55℃~80℃
Single weight :11.3g/PCS(including glue weight)
Gross weight of whole container :20.06kg/ box
Net weight of whole container :19.58kg/ box
Packing specification :16PCS/ bag, 1680PCS/ box
Packing size :53*29*32CM
