UHF dry inlay

UHF dry inlay

An RFID dry inlay is essentially an RFID chip and antenna laminated onto a substrate. Unlike wet inlays, dry inlays do not have an adhesive layer.

Chip	Alien H9，H10,H3,M4,M5,U7,U8,Ucode 9 9662/9654/9630/9610/9640/9529.etc
Size	Circle size,Rectangle size,Square size,customized
Material	PVC/pet/paper (support anti-metal material add)
Operating Frequency	860-960mhz
Applications	payment,library,inventory,logistic,warehouse management ,Asset tracking and identification

Optional

anti-metal, 3-M sticker

Standard package

per piece / roll package

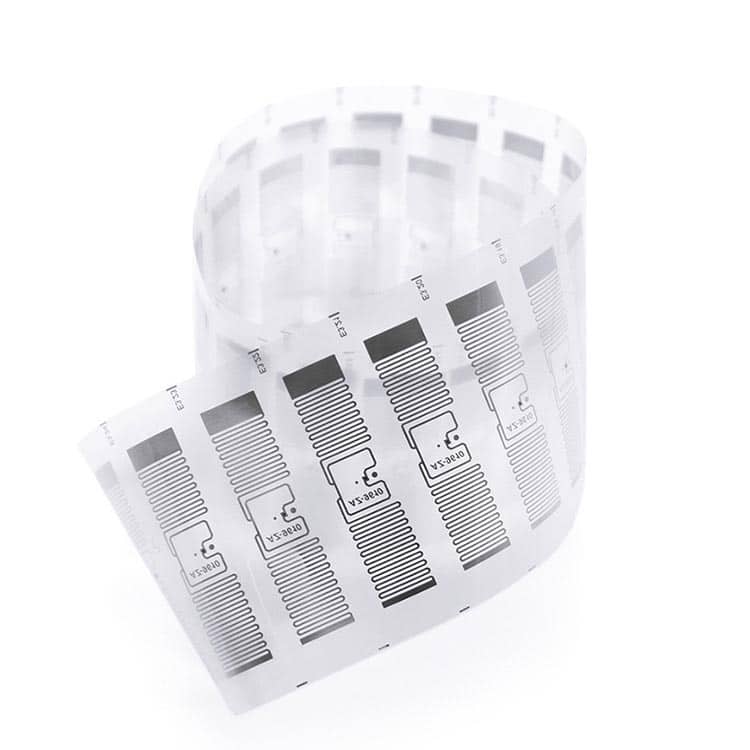

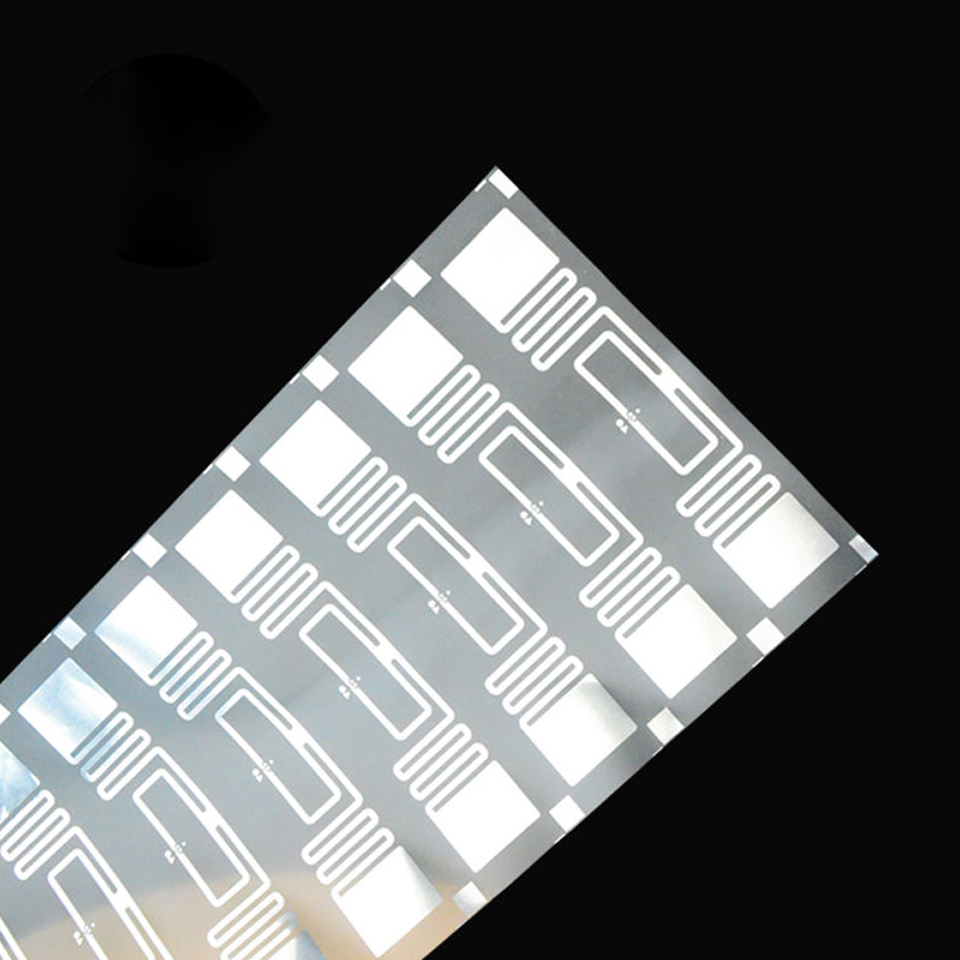

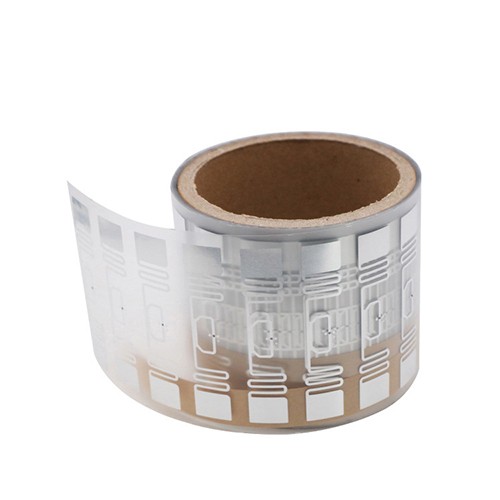

UHF Dry Inlay

UHF tags do have some downsides, one being that they operate at a higher frequency and thus have shorter wavelengths which attenuate fairly quickly and are also very sensitive to interference. These tags cannot easily be read while attached to objects containing water and animal tissues because water absorbs UHF waves. The UHF tags also do not work well with metals, as they get detuned when they are attached to metal objects.
